Flat Molded Sheets

Redco Non-Asbestos Flat Molded - NF331

Reddaway is pleased to offer their NF331 as an ideal replacement for traditional asbestos compounds.

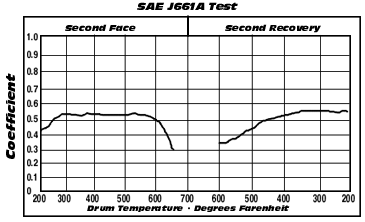

This compound is easily fabricated using conventional shop equipment such as band saws, drill presses and fly cutters. For maximum blade life, grit band saw blades are recommended. NF331 is kind to mating members, exhibits long life, and is compatible in oil. It exhibits a stable coefficient of friction of 0.5 over a wide range of operating temperatures up to 600°F.
Recommended Operating Range:
Max temperature 450°

Unit Pressure:
Max 500 psi
Friction Level:
Normal 0.45
Hot 0.36
Code FF
Physical Properties:
Ultimate Tensile strength: 3000 psi
Ultimate Rubbing Speed: 5000 fpm
Rate of Wear per Hr. @ 350°F: 0.0046 in
Sizes Available:
Sheet Size: 25" x 29"
Thickness - 1/8", 5/32", 3/16",1/4",5/16",3/8",1/2", 5/8", 3/4"

Flat Molded Sheets
