Flexible Molded Roll Lining

Redco Non-Asbestos Flexible Molded - 3915

Redco 3915 is a new improved flexible molded lining incorporating random dispersed fibers to substantially increase rivet holding strength. It is still recommended, as with any flexible molded, to heat treat the lining for maximum strength. The lining, however, may be riveted without heat treating if care is taken in exerting gentle stops during initial break-in. This is normal good operating practice for any brake lining.

Redco 3915 flexible molded has undergone extensive field testing in severe services, such as forklift trucks, without failure.
Recommended Operating Range:
Max temperature 662°F
Max continuous 320°F
Unit Pressure:
10 psi to 100 psi

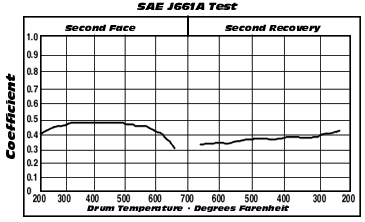

Friction Level:
Normal 0.42
Hot 0.39
Code FF
Physical Properties:
Specific Gravity: 1.71
Ultimate tensile strength: 1100 psi
Ultimate compressive strength:6550 psi
Ultimate shear strength: 750 psi
Rivet holding capacity (Bearing): 6640 psi
Rivet holding capacity (Tension): 890 psi
Cross break strength: 3400 psi
Sizes Available:
Width - 1" through 13"
Thickness - 3/16", 1/4", 5/16", 3/8", 1/2"
Length - 15' rolls
